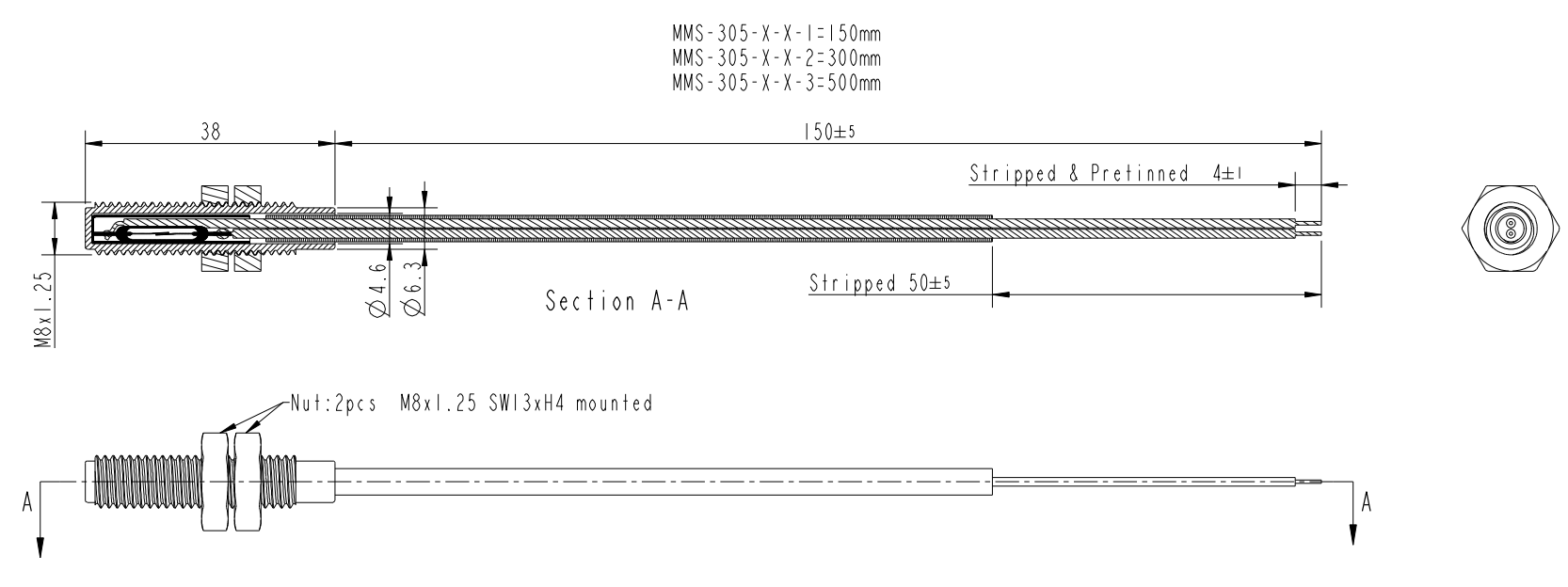

Reedsensor M8 Tubular Threaded MMS-305
| Quantity | Item price |
|---|---|
| To 9 |
€10.49*
|
| To 49 |
€9.99*
|
| To 99 |
€9.69*
|
| From 100 |
€9.39*
|
Available, delivery time 1-3 days
Product number:
MMS-305-4-2-3
Product information "Reedsensor M8 Tubular Threaded MMS-305"
| AT: | 15..20 |
|---|---|
| Breakdown voltage min. (VDC): | 200 |
| Cable length (mm): | 500 |
| Carry current max. (A): | 1.5 |
| Contact rating max. (W): | 5 |
| Form: | B (Normally Closed / SPST-NC) |
| Housing material: | Ni-plated brass |
| Switching current max. (A): | 0.25 |
| Switching voltage max. (VDC): | 175 |
| Thread: | M8x1.25 |
| Working temperature: | -20°C...+80°C |
